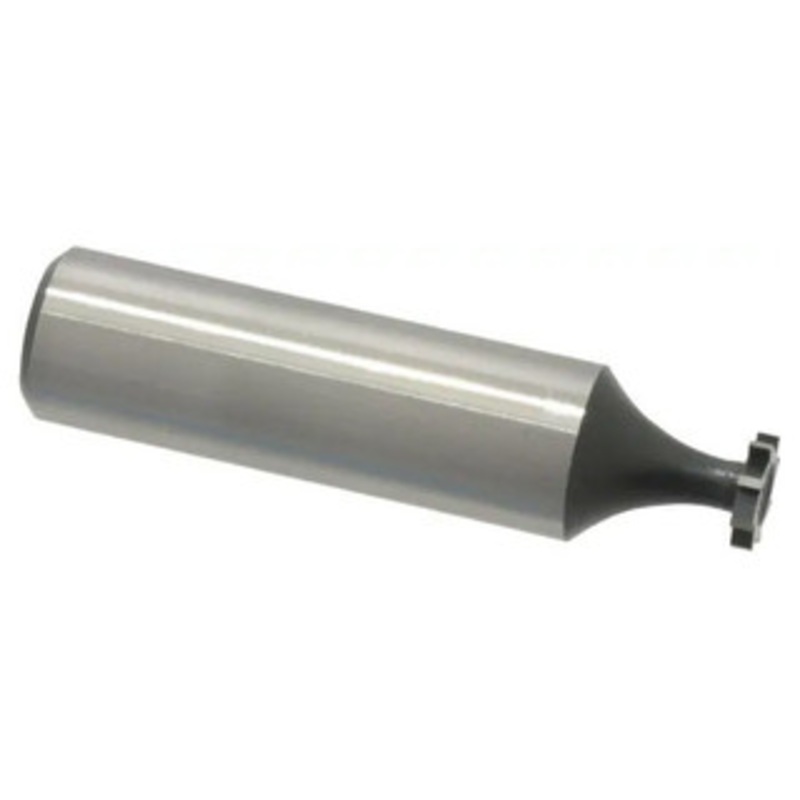

Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 5/16″ Diameter, 1/16″ Face Width, 2-1/16″ OAL

High Speed Steel, 6 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-1/16″ OAL x 1/2″ Shank, Straight Teeth, ANSI 202-1/2, Old Standard 206

Features:

• 1/2″ straight shank
• Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
• High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Specifications:

Connection Type Shank Old Standard Number 206 American Standard Number (ANSI) 202-1/2 Cutting Diameter (Inch) 5/16 Cutting Diameter (Decimal Inch) 0.3125 Cutting Width (Inch) 1/16 Cutting Width (Decimal Inch) 0.0625 Tooth Configuration Straight Material High Speed Steel Finish/Coating Uncoated Shank Diameter (Inch) 1/2 Overall Length (Inch) 2-1/16 Number of Teeth 6
