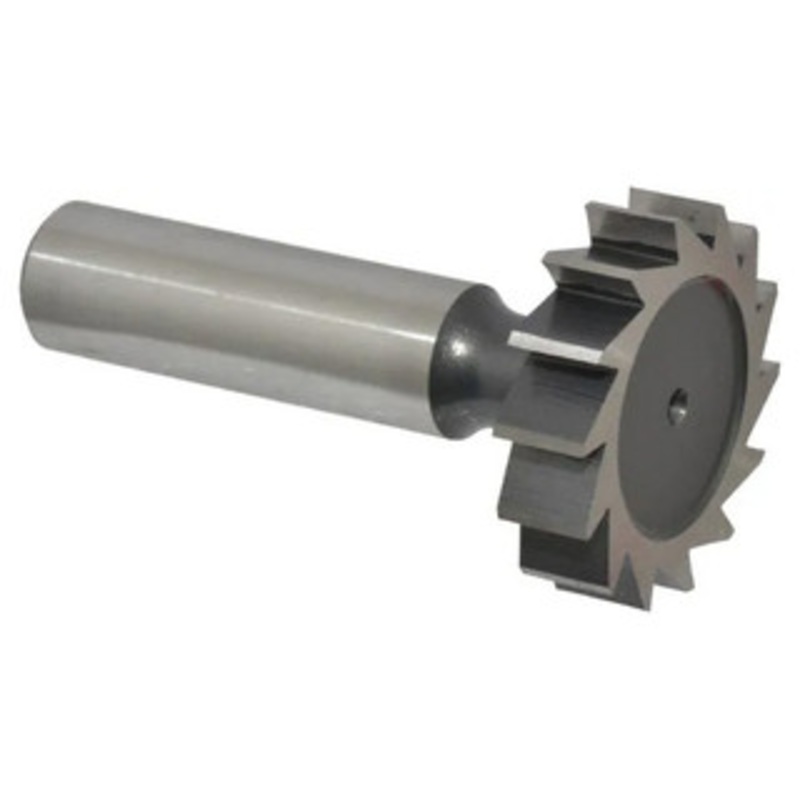

Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 1-1/4″ Diameter, 5/16″ Face Width, 2-5/16″ OAL

High Speed Steel, 14 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-5/16″ OAL x 1/2″ Shank, Straight Teeth, ANSI 1010, Old Standard D

Features:

• 1/2″ straight shank
• Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
• High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Specifications:

Connection Type Shank Old Standard Number D American Standard Number (ANSI) 1010 Cutting Diameter (Inch) 1-1/4 Cutting Diameter (Decimal Inch) 1.2500 Cutting Width (Inch) 5/16 Cutting Width (Decimal Inch) 0.3125 Tooth Configuration Straight Material High Speed Steel Finish/Coating Uncoated Shank Diameter (Inch) 1/2 Overall Length (Inch) 2-5/16 Number of Teeth 14
