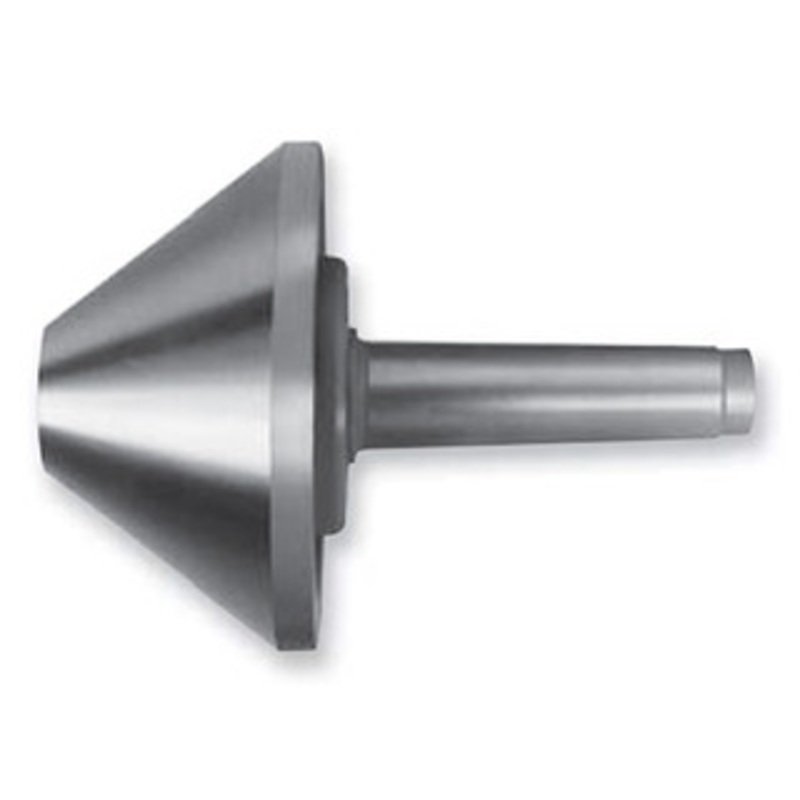

Interstate Bull Nose Live Center for Piping or Tubing, MT2

The Bull Nose center has all the features of the live center, but with a larger rugged head for working with pipe and hollow shafts.

Features:

• Radial loads based on 500 RPM.
• Bearing sealed and waterproofed to assure long life and consistent accuracy.
• Accuracy: 0.0003″

Specifications:

ITEM NUMBER 34-866-4 34-867-2 74-862-4 34-868-0 34-869-8 MORSE TAPER 2 3 3 4 5 OUTSIDE DIA. 2.480″ 3.070″ 4.210″ 5.040″ 5.790″ MIN. CONE DIA. 0.460″ 0.710″ 1.250″ 1.380″ 1.380″ HEAD L. a2 2.480″ 3.030″ 2.760″ 3.270″ 4.090″ OAL 5.350″ 6.770″ 6.500″ 7.600″ 9.580″ ANGLE a 70 70 75 75 75 RADIAL LOAD (LBS.) 440 440 660 700 1100
