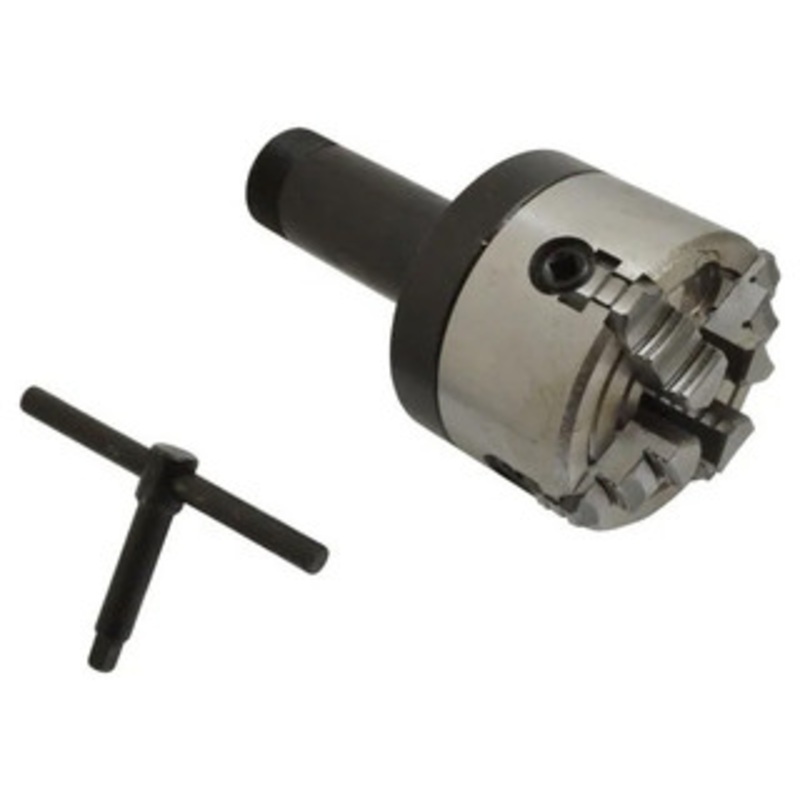

Interstate 4-Jaw Independent Lathe Chuck with 5C Shank, 3″ Diameter

4 Jaws, 3″ Diam, Independent Manual Lathe Chuck
5C Mount Spindle, Reversible, 4,000 Max RPM, 0.765″ Through Hole Diam, Cast Iron

Semi-Steel – 5C Shank

Precision chucks eliminate the problem of having to tear down a set-up on a lathe to switch to a 3 or 4 jaw chuck when working with a diameter that 5C or MT spindles arent readily available for.

• Threaded end for positive end stop
• 3/4″ thru hole
• Independent chucks are designed with jaws that move independently of one another.
• Cast iron also called semi-steel is the industry standard for chuck body material.

Standard Accessories:

• 1 hex key and one set of hardened steel jaws which are reversible for boarder clamping range.

Specifications:

Chuck Type Independent Nominal Chuck Size 3 Number of Jaws 4 Mount 5C Through-Hole Diameter (Decimal Inch) 0.7650 Body Material Cast Iron (Semi-Steel) Reversible Jaws Reversible Jaws Number of Jaw Pieces One-Piece Chuck Diameter (Inch) 3 Adjustable No Body Length (Decimal Inch) 2.9090 Overall Length (Decimal Inch) 6.9290 Maximum RPM 4000 Includes Reversible Jaws; T-Wrench
