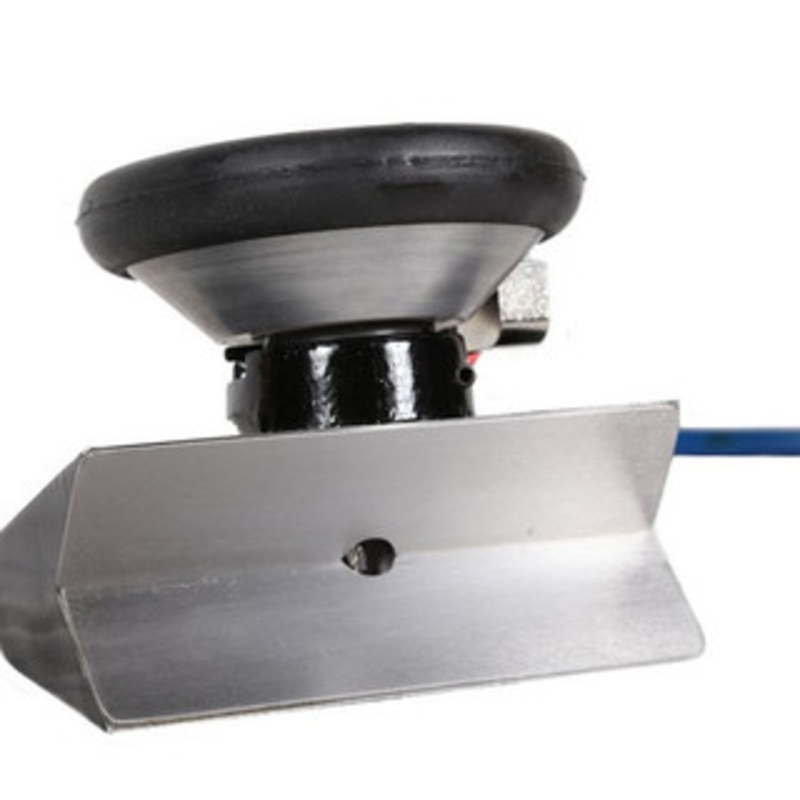

Heck Turbo-Burr Pneumatic Deburring Tool

Perfect for deburring and edge finishing and nonferrous metals, plastics, stainless steel, aluminum, laminates, and printed circuit boards.

• Air turbine motor.
• Transports easily and conveniently to the work site.
• For use of a hand and a bench tool.
• Puts a safety edge on parts, at mill, saw or shear.
• Breaks sharp edges on parts, at mill, saw or shear.
• Deburrs one side.
• HTB-60S With closed bottom “V” Block
• Suitable for most applications
• HTB-60R With small gap at the bottom of the “V” Block
• Suitable for materials 0.135″ and heavier, where large burrs are present.

Specifications:

• Rotation: 55,000 RPM (no load speed)
• Air Consumption: 5 to 11 CFM-lubrication not needed.
• Air Pressure: 60 to 120 PSI
• Air Hose: 1/4″
• Burr type: 1/4″ diameter x 2″ length overall-solid carbide.
• Depth of bevel: 0 to .075″ at 45
• Feed speeds: Up to 2″ per second
• Weight: 3.5 lbs. (1.6kg)
