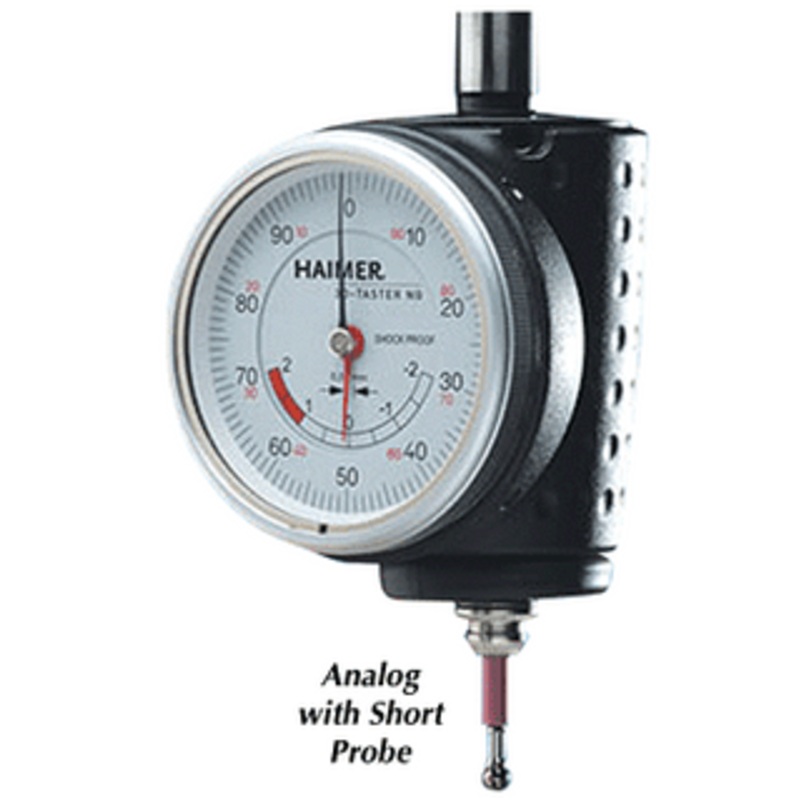

HAIMER New Generation 3D Sensor/Taster Metric

The 3-D Sensor NG is a further development of our worldwide accepted and proven Universal 3-D sensor. Its distinguishing features are improved mechanics and a new and compact design.

Advantages:

• Comfort and easy to grip casing, no restriction to working area.
• Precise display of spindle position with large 1/100mm dial gauge (2hands)
• Utmost precision of 0.01mm (When using original Haimer probe tips)
• Marked overrun distance (Safety distance)

Functions:

• Aligning machine spindles to work piece edges and reference edges (x, y, z axis)
• Set zeros.
• Center borings and shfts.
• Measuring lengths and depths.
• Checking straigthness and levelness of surfaces.
• Aligning work pieces and vices.
• Quick, without calculations, no mistakes with algebracic signs.

Specifications:

• Analog Shank: 12 mm
• With Short Graduations: 0.01 mm
• Probe Centering Accuracy: 0.01 mm
