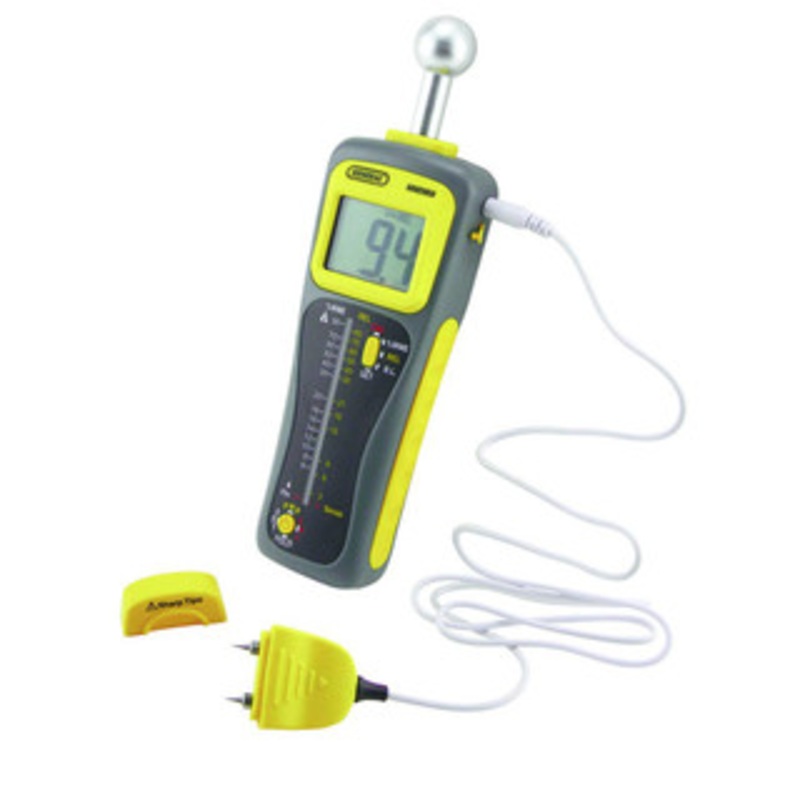

General Tool Pin/Pinless Deep Sensing Moisture Meter with Spherical Sensor and Remote Probe – MMD950

The #MMD950 Pin/Pinless Deep Sensing Moisture Meter with Spherical Sensor and Remote Probe is ideal for contractors, woodworkers and homeowners who need to find leaks and measure the moisture content of wood and other construction materials

• Two measurement modes: Pin (%WME) and pinless (REL)
• The spherical sensor can detect moisture up to 4 in. behind walls and ceramic tile
• Dual displays: Jumbo LCD and 40-dot LED bar graph
• Includes a remote pin-type probe
• The protective cover doubles as a calibration checker
• Spare pins compartment
• #PIN4DE replacement pins are available
• Auto zero calibration
• Data hold function
• Auto power off with adjustable trigger

• Measurement range/resolution: 6.0 to 87.6%WME (Wood Moisture Equivalent) and 0.1 to 99 REL/0.1%
• Measurement accuracy in pin mode: 3%
• Pin length: 0.4 in. (10mm)
• Length of remote probe cable: 46 in. (1.168m)
• Pinless measurement depth: 4 in. (101mm)
• LCD digit height: 0.9 in. (22.9mm)
• LED bar graph composition/colors: 40 dots/green, red and yellow
• Bar graph resolution: 1 LED (2.5%)
• Auto power off: After 3, 5 or 10 minutes (user selectable) with 0% reading
• Operating temperature: 32 to 122F (0 to 50C) @<80% RH
• Weight: 8 oz. (249g)
• Power source: “9V” battery (included)

• External probe with 0.4 in. (10mm) long pins
• #PIND4E replacement pins
• Battery
• Custom hard plastic carrying case
• 1-year limited warranty
• 9 x 2.75 x 1.625 in. (229 x 70 x 41mm)
