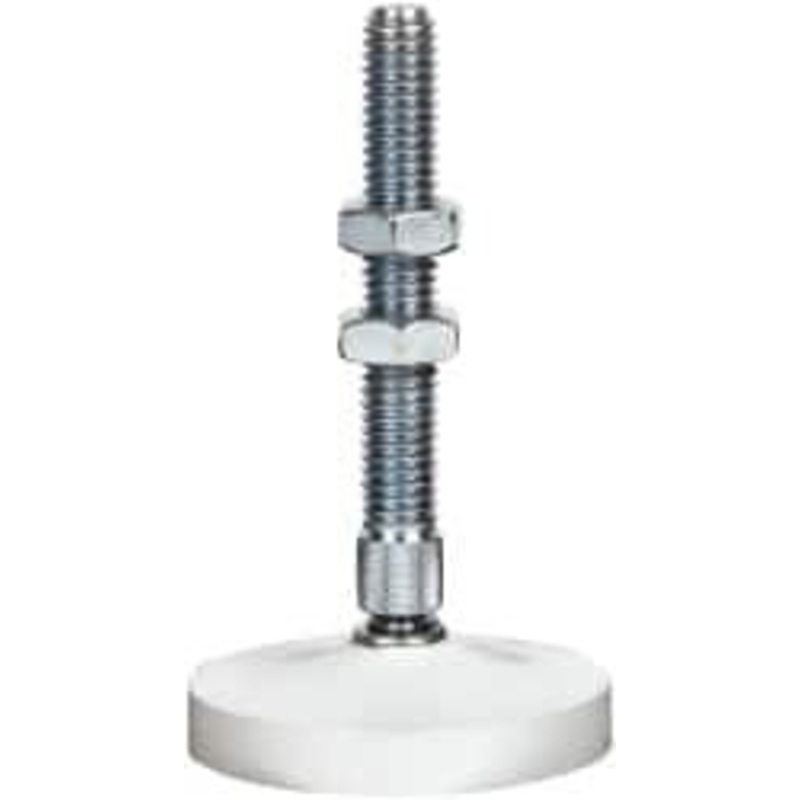

Name: Destaco 3/8-16 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly 61.98mm Thread Length, 90.4mm OAL, Flat Tip Cap, 2 Tip Surface Diam, Use with Toggle Clamps 210209 - 64825532
SKU: 64825532
Availability: InStock

Sale!

Destaco 3/8-16 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly 61.98mm Thread Length, 90.4mm OAL, Flat Tip Cap, 2 Tip Surface Diam, Use with Toggle Clamps 210209 – 64825532

Destaco 3/8-16 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly 61.98mm Thread Length, 90.4mm OAL, Flat Tip Cap, 2" Tip Surface Diam, Use with Toggle ClampsManufacturer Part #: 210209S/N: 64825532UNSPSC: 31161500UPC: 697437594037(Minimum Order Quantity=

$15.76 $26.27

Destaco 3/8-16 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly 61.98mm Thread Length, 90.4mm OAL, Flat Tip Cap, 2″ Tip Surface Diam, Use with Toggle Clamps

Manufacturer Part #: 210209

S/N: 64825532

UNSPSC: 31161500

UPC: 697437594037

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Application Toggle Clamps Spindle Material Carbon Steel Thread Size 3/8-16 in Thread Length (mm) 2.4399 Overall Length 3.5591in, 90.4mm Overall Length (mm) 3.5591in, 90.4mm Overall Length (Inch) 3.5591in, 90.4mm Tip Cap Hardness 70-80A Tip Type Swivel Foot Tip Surface Diameter (mm) 2in, 50.8mm Tip Surface Diameter (Decimal Inch) 2.0000 Tip Maximum Diameter 2in, 50.8mm Nut Height 0.23in, 5.84mm Minimum Operating Temperature -40F Tip Cap Material Neoprene Tip Cap Shape Flat Swivel Angle 26 Tip Maximum Diameter (Decimal Inch) 2.0000 Nut Height (mm) 5.84 Includes Jam Nuts UNSPSC Code 31161500
