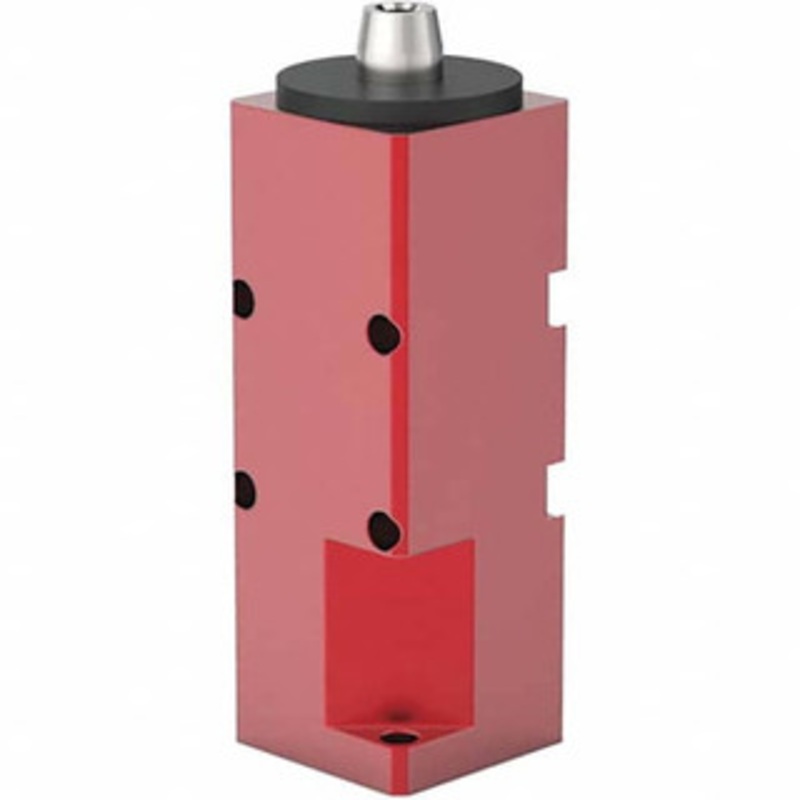

Destaco 25 Lb Clamping Force, Right Hand Swing, 21.59mm Total Stroke, Double-Acting Pneumatic Swing Clamp 10-32 Port, 85.6mm Body Length x 19.05mm Body Width, 4.1 cm3 (Clamp), 130 Max psi
Manufacturer Part #: 8115-LA
S/N: 64824972
UNSPSC: 23153000
UPC: 697437581174
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Operation Type |
Air |
| Action Type |
Single |
| Swing Direction |
Right Hand |
| Clamping Force (Lb.) |
24.73 |
| Clamping Force (N) |
110.00 |
| Operating Volume (cc) |
4.10 (Clamp) |
| Mount Type |
Surface |
| Total Stroke Distance (mm) |
21.59 |
| Total Stroke Distance (Decimal Inch) |
0.8500 |
| Body Length (Decimal Inch) |
3.3700 |
| Body Length |
85.60 |
| Body Diameter (Decimal Inch) |
0.7500 |
| Body Diameter (mm) |
19.05 |
| Vertical Stroke Distance (Decimal Inch) |
0.3819 |
| Vertical Stroke Distance (mm) |
9.70 |
| Rod Diameter (mm) |
11.18 |
| Rod Diameter (Decimal Inch) |
0.4400 |
| Clamp Arm Compatibility |
801528 Standard Clamping Arm, 801529 Standard Clamping Arm, 801530 T-Style Clamping Arm, 801531 T-Style Clamping Arm, 801532 Blank Clamping Arm |
| Maximum Operating Pressure (bar) |
8.96 |
| Body Width/Diameter (mm) |
19.05 |
| Body Width/Diameter (Decimal Inch) |
0.7500 |
| Maximum Operating Pressure (psi) |
130 |
| Maximum Operating Pressure (PSIG) |
130 |
| Minimum Operating Pressure (PSIG) |
30 |
| Minimum Operating Pressure (bar) |
2.07 |
| Port Size |
10-32 |
| Includes |
Clamping Arm, Spindle |
| Features |
Block Style Body, Lightweight & Robust |
| Bin |
3.50 |
| G (In) |
0.4700 |
| H |
1.0000 |
| J (In) |
1.1200 |
| K (In) |
1.0000 |
| N (In) |
1.5000 |
| M (In) |
1.0000 |
| Q (In) |
0.20 |
| P (In) |
0.4700 |
| C (In) |
1.2500 |
| Tapped Depth |
0.3100 |
| Overall Open Length (Decimal Inch) |
4.7500 |
| Stem Diameter |
1.4400 |
| UNSPSC Code |
27112100 |
| E (in) |
0.6200 |
| Base Radius (In) |
#10 |
| D -In– |
1.2500 |
| Overall Length (Decimal Inch) |
0.2500 |
| F -In– |
0.4700 |
| Overall Length (Inch) |
1/4 |
