Defelsko PosiTector 6000 Coating Thickness Gages with NRS Probe

APPLICATION: Non-Conductive coating on Non-Ferrous Metals (Aluminum, Copper etc.)

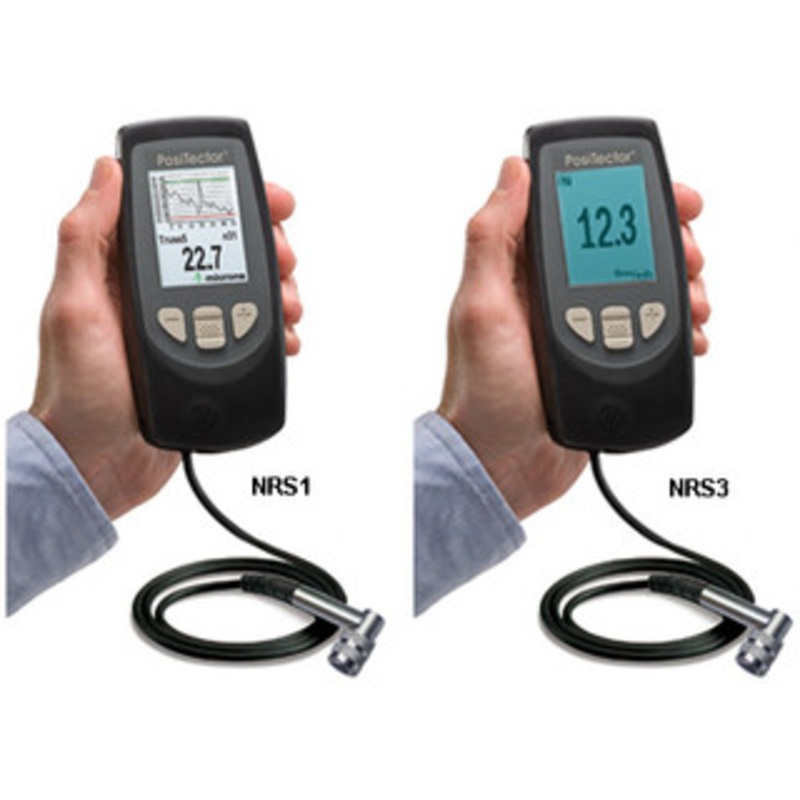

The PosiTector 6000 NRS1 includes a Standard(1) gage body and a removable NRS probe for measuring non-conductive coatings on non-ferrous metal substrates (aluminum, copper, etc.). Ideal for measuring in areas of low headroom.

The PosiTector 6000 NRS3 includes a Advanced(3) gage body and a removable NRS probe for measuring non-conductive coatings on non-ferrous metal substrates (aluminum, copper, etc.). Ideal for measuring in areas of low headroom.

Click for Probe Details / Ordering Guide

Simple:

• Ready to measure-no calibration adjustment required for most applications
• One-Handed menu navigation
• Bi-color indicator light-ideal in a noisy environment
• RESET feature instantly restores gauge to factory settings

Durable:

• Solvent, acid, oil, water and dust resistant – weatherproof
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster with belt clip
• Two (2) year warranty on gage body and probe.

Accurate:

• Certificate of Calibration showing traceability to NIST included
• Built-in temperature compensation ensures measurement accuracy
• Hi-RES mode increases gages displayed resolution for use on applications that require greater precision
• Conforms to national and international standards including ISO and ASTM

Versatile:

• Fully interchangeable probes are compatible with ALL gage bodies Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
• Selectable display languages
• Hi Contrast backlit display for bright or dark environments
• Flip display enables right-side-up viewing
• Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
• Uses alkaline or rechargeable batteries (built-in charger)

Feature Comparison Chart Standard(1) Advanced(3) Order Code NRS1 NRS3 Included Probe NRS NRS Accepts all PosiTector 6000 probes X X All features shown on Overview page X X Hi Contrast reversible color LCD X FAST mode – faster measurement speed for quick inspection X X SCAN Mode – take continuous readings without lifting the probe X Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits X X Statistics – Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring X X Reading Storage Capacity 250 in one group 100,000 in up to 1000 groups USB port for fast, simple connection to a PC and to supply continuous power. USB cable included X X USB mass storage – stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required X X Connects to PosiTector.net X X SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels X PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings X Wireless Technology for data transfer to a PC or optional portable printer X Real Time Graphing X Onscreen help, picture prompting and batch notes X Multiple stored calibration adjustments for measuring on a variety of substrate conditions X Two (2) Year Warranty on Gage and Probe X X NRS Probe (included) Range: 0 – 1500 um
0 – 60 mils Accuracy*: + (0.05 mils + 1%) 0 – 2 mils
+ (0.1 mils + 1%) > 2 mils + (1 um + 1%) 0 – 50 um
+ (2 um + 1%) > 50 um *Accuracies are stated as a fixed value plus a percentage of the gage’s actual reading. Comes complete with Standard(1) gage body, NRS probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

Size: 137 x 61 x 28 mm (5.4″ x 2.4″ x 1.1″)

Weight: 140 g (4.9 oz.) without batteries

CONFORMS TO: ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
