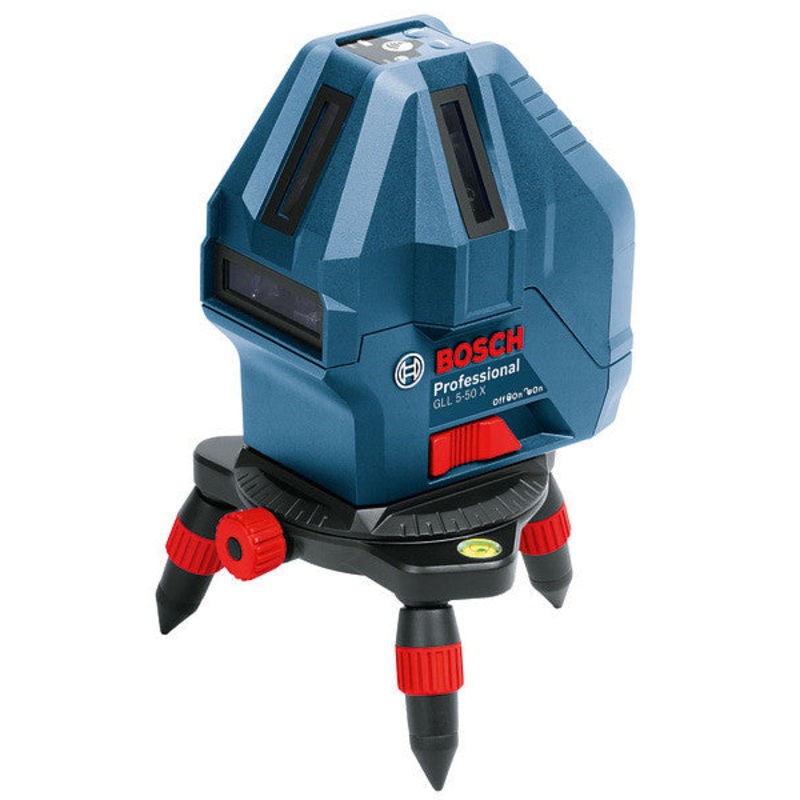

Doubling the line visibility for increased work efficiency in everyday interior leveling jobs
- Greater Visibility – Double line visibility on front cross for the optimum working performance
- Compact – Light and easy-to-carry
- Robust – Thanks to the highly sophisticated Bosch pendulum precision system (PPS) which further enhancing maximum tool protection and levelling accuracy
- Quality – Incorporated with Bosch Intelligent Current Management (ICM) providing the highest laser line performance and extended operating lifetime
- Versatile applications for different marking, alignment and levelling jobs
- State-of-the-art detachable rotating platform for easy carrying and precise control of laser lines
- Easy to use – separate selection buttons for vertical and horizontal lines
- Best-in-class engineering and quality assurance
- IP54 standard against dust and splash water
Technical Data
| Laser diode |
630 650 nm, < 1mW |
| Laser class |
2 |
| Working range |
15 m |
| Working range with receiver |
50 m |
| Accuracy |
0.2 mm/m |
| Angle accuracy (between 0-90 angle) |
0.2 mm/m |
| Self-levelling range |
3 |
| Dust and splash protection |
IP 54 |
| Power supply |
4 x 1.5 V LR6 (AA) |
| Tripod thread |
5/8″ thread (on turning base platform) |
| Weight, approx. |
0.5 kg |
