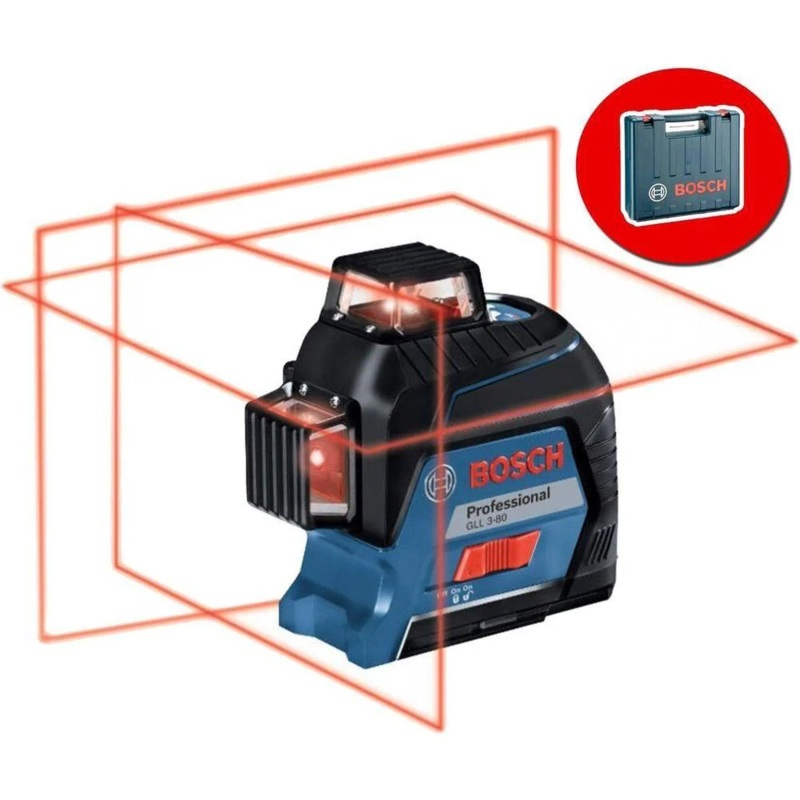

Bosch GLL 3-80 Line Laser Level (3x 360 Lines) [80 meters]
The compact Multi Line Laser for all indoor applications
- One horizontal and 2 vertical 360 lines enable many new applications for simultaneous marking, alignment and levelling indoors
- Self-levelling (4 in 4 sec), very precise ( 0.2 mm/m) and range of up to 80 m with receiver
- Compact, easy-to-handle and extremely robust (IP54)
Specification overview
| Laser diode |
640 nm, < 1 mW |
| Operating temperature |
-10 40 C |
| Storage temperature |
-20 70 C |
| Laser class |
2 |
| Working range |
40 m |
| Working range with receiver |
80 m (Diameter) |
| Working range without receiver |
40 m (Diameter) |
| Accuracy |
0.2 mm/m |
| Self-levelling range |
4 |
| Levelling time |
4 s |
| Dust and splash protection |
IP 54 |
| Power supply |
3 x 1.5 V LR03 (AAA) |
| Operating time (max.) |
18 h in 1-line mode |
| Tripod thread |
1/4″, 5/8″ |
| Weight, approx. |
0.76 kg |
| Length |
159 mm |
| Width |
75 mm |
| Height |
141 mm |
| Projection |
3 x 360 line |
