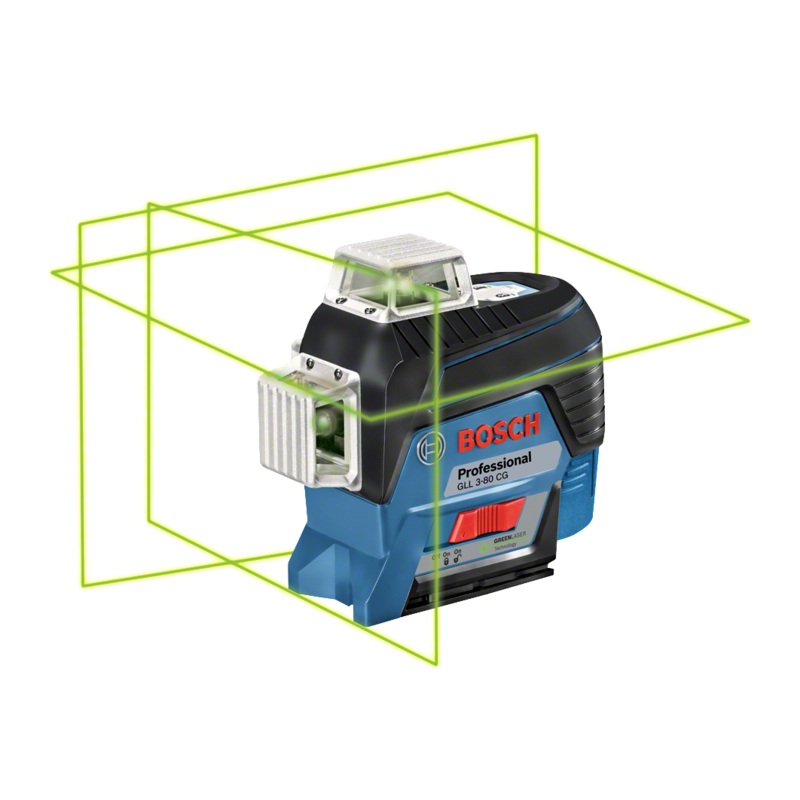

Line Laser
GLL 3-80 CG
0 601 063 U80 (Philippines)
Green supreme visibility in 3 x 360. Simply connected.
- Up to four times better visibility due to the green laser lines
- Bluetooth connection to your smartphone for remote control use and contactless adjustment of the tool
- High work efficiency due to 3 x 360 lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool
- Dual Power Source: Can be operated both with 12 V-LI-ion battery and with standard alkaline batteries
- Self-levelling (4 in <4 sec), very precise ( 0.2 mm/m) and range of up to 120 m with the LR 7 Professional receiver (optional)
- Compact, easy to handle and extremely robust (IP54)
- Pendulum lock ensures safe transport
Technical data
| Laser diode |
500 540 nm, < 10 mW |
| Operating temperature |
-10 40 C |
| Storage temperature |
-20 70 C |
| Laser class |
2 |
| Working range |
30 m |
| Working range with receiver |
120 m (Diameter) |
| Working range without receiver |
30 m (Radius) |
| Accuracy |
0.2 mm/m |
| Self-levelling range |
4 |
| Levelling time |
4.0 s |
| Dust and splash protection |
IP 54 |
| Power supply |
12 V Li-Ion battery 4 x 1.5 V LR6 (AA) |
| Operating time (max.) |
6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
| Tripod thread |
1/4″, 5/8″ |
| Weight, approx. |
0.9 kg |
| Length x width x height |
162 x 84 x 148 mm |
| Colour of laser line |
green |
| Projection |
3 x 360 line |
| Compatible laser receivers |
LR 7 |
