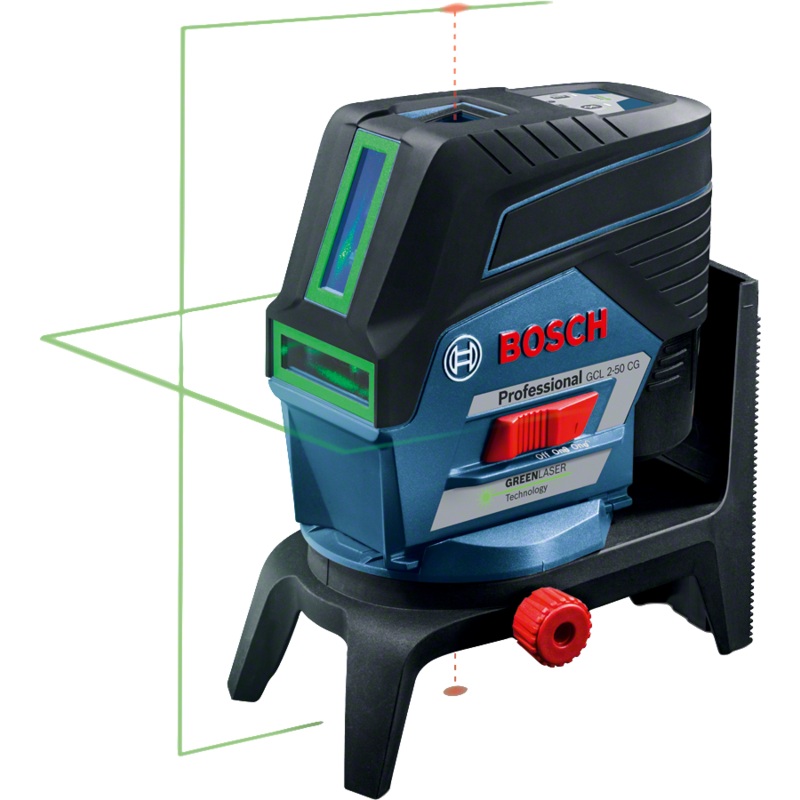

Combi Laser
GCL 2-50 CG
0 601 066 H00
Supreme visibility connected with smart functions
- Green horizontal and vertical lines for maximal visibility
- Bluetooth connection to smartphone for remote control and adjustment of the tool
- Dual Power Source: Can be operated both with 12 V-LI-ion battery and with standard alkaline batteries
- Horizontal and vertical laser lines and two centred plumb points with optimal visibility
- Precise positioning of the laser lines around the plumb points motorised positioning with RM 3 Professional (optional), using an app or remote control or manual positioning with RM 2 Professional
- High visibility of the laser lines with a working range of 20 m (without receiver)
- Working range of 50 m with the LR 7 Professional receiver (optional)
- Pendulum lock ensures safe transport
Technical data
| Laser diode |
500 540 nm, < 10 mW 630 650 nm, < 1mW |
| Operating temperature |
-10 50 C |
| Storage temperature |
-20 70 C |
| Laser class |
2 |
| Working range |
20 m |
| Working range with receiver |
50 m |
| Accuracy |
0.3 mm/m |
| Working range of laser points, max. |
10 m (top) 10 m (bottom) |
| Self-levelling range |
4 |
| Dust and splash protection |
IP 54 |
| Operating time (max.) |
10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation 15 h (Li-Ion) and 12 h (4 x AA) in line operation 60 h (Li-Ion) and 32 h (4 x AA) in point operation |
| Tripod thread |
1/4″ |
| Weight, approx. |
0.6 kg |
| Length x width x height |
136 x 55 x 122 mm |
| Colour of laser line |
green |
| Projection |
2 lines / 2 points |
| Plumb point accuracy |
0.7 mm/m |
| Compatible laser receivers |
LR 7 |
