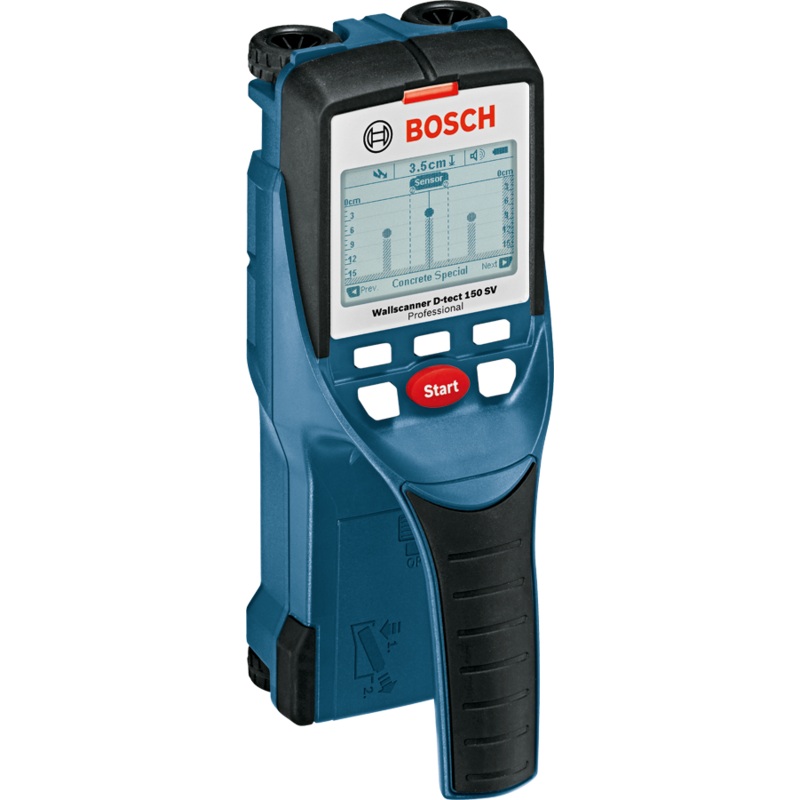

The specialist for finding objects in difficult conditions
- Unique: More reliable detection of objects in damp concrete
- Millimetre-accurate detection of ferrous/non-ferrous metals, live cables, wooden studs and plastic pipes
- Digital display of material properties
- The actual object depth is displayed, making it easy to determine the actual level of concrete cover
- The Signal View/SV displays objects that are very close together even more precisely
- The specialist for finding reinforcements with three operating modes for concrete
- Ruler View: measuring distances between objects, millimetre-accurate marking on the wall
- Requires no calibration
Technical data
| Detectable materials |
Plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables |
| Max. detection depth |
150.0 mm |
| Detection depth, steel, max. |
150.0 mm |
| Detection depth, copper, max. |
150.0 mm |
| Detection depth of live cables, max. |
60.0 mm |
| Detection depth of wooden substructures, max. |
40.0 mm |
| Accuracy |
5 |
| Automatic deactivation, approx. |
5 minutes |
| Power supply |
4 x 1.5 V LR6 (AA) |
| Weight, approx. |
0.65 kg |
| Length x width x height |
220 x 97 x 120 mm |
|
|
| Dust and splash protection |
IP 54 |
| Additional function |
Signal view, reliable measurements in damp concrete |
