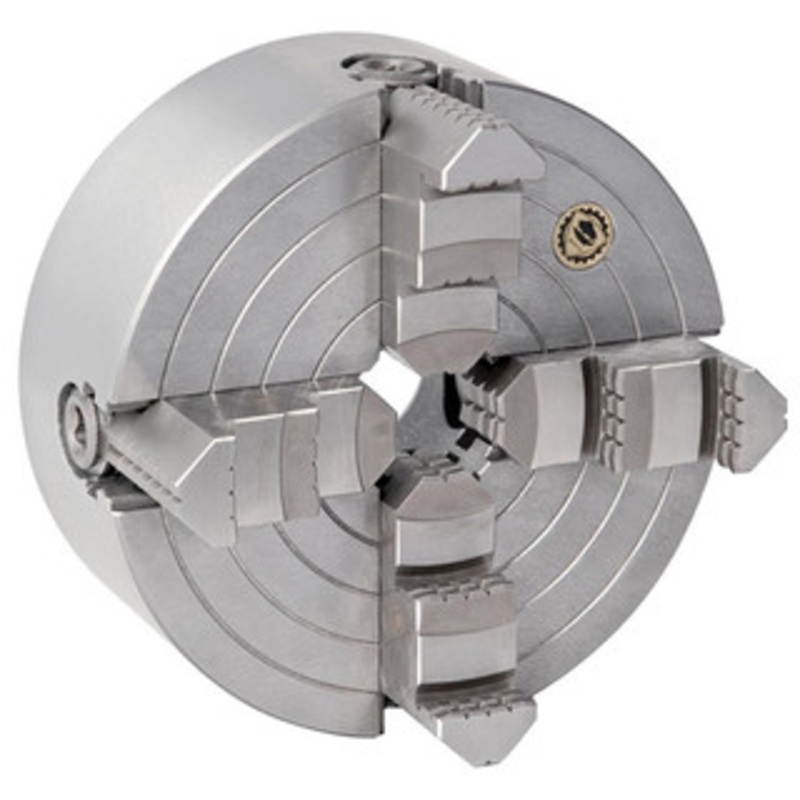

Bison Independent Lathe Chuck
7-854-1041, 4-Jaw, 10″ Size, L00 Spindle

• Four-jaw standard duty independent Lathe Chucks with solid reversible jaws, spheroidal graphite iron body.
• The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are case hardened steel.
• These chucks feature jaws that are individually adjustable, allow firm gripping of odd shaped work and the jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force.

Features:

• Jaws are individually adjustable, allowing firm gripping of odd shaped work
• (4) Jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force
• Chuck bodies are semi-steel
• Jaws are made of high quality carbon steel and hardened
• Thrust bearings and operating screws are made of case hardened steel
• Made in Poland

Specifications:

BRAND BISON MODEL # 7-854-1041 CHUCK SIZE 10″ SPINDLE L00 MOUNT Rear THRU HOLE 2.56″ TOOL MATERIAL Semi-Steel Body SELF-CENTERING No SELF CENTERING No TYPE Independent Lathe Chuck NO. OF JAWS 4 SERIES L SPINDLE TAPER L00 SIZE 10″ WEIGHT 57 lbs. COUNTRY OF ORIGIN POLAND

Click to view the Series 7-854 Dimensional Data

See all Bison Independent Lathe Chucks, 4-Jaw
