Bison 3-Jaw Lathe Chuck Self Centering
“D-1″ Camlock Mount, 8” Diameter D1-3

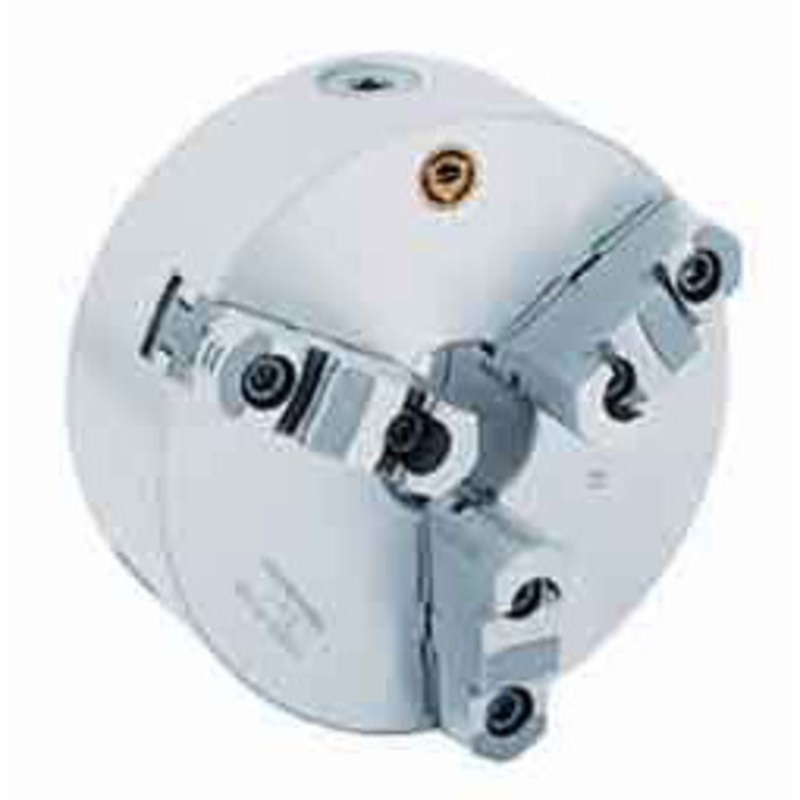

3-Jaw Universal Camlock D Direct Mount Chuck with 2-Piece Hard Reversible Jaws

7-803-0833

Universal Self-Centering Scroll Chucks

These chucks can be used on all types of lathes, and on different kinds of milling, drilling and CNC attachments.

Universal Features:

• Semi-steel body
• 3 pinion design
• Scroll plate is drop forged of fine quality alloy steel and carefully case hardened
• Thread flanks are ground on both sides
• Teeth and guideways are hardened and ground on both sides
• 2-Piece Hard Reversible Jaws

Each chuck is provided with:

• 1 Set of hard master jaws
• 1 Set of hard top reversible jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• Hex keys
• Eye bolts for chuck sizes 15-3/4″ and larger

3-Jaw (2 Piece) Scroll Chuck
Semi-Steel Body
Camlock D 8in D1-3
Bison-Bial

Technical Data:

Chuck Diameter D in 8 Mount D1-3 Maximum Speed RPM 2500 Weight lb 42 Hole Diameter d in 2.0275 B in 2.7795 G in 2.125 C in 0.5118 H in 3.5827 h in 1.772 Camlock Stud,
Diameter 9/16″ Thread M10 x 1 Qty 3 Clamping Range
d1 (min-max) .157 – 3.54 Clamping Range
d2 (min-max) 2.83 – 6.14 Clamping Range
d3 (min-max) 5.24 – 7.87 Clamping Range
d4 (min-max) 1.97 – 5.12 Clamping Range
d5 (min-max) 4.13 – 7.48

See all Bison 3-Jaw Lathe Chucks Self Centering “D-1” Camlock Mount
