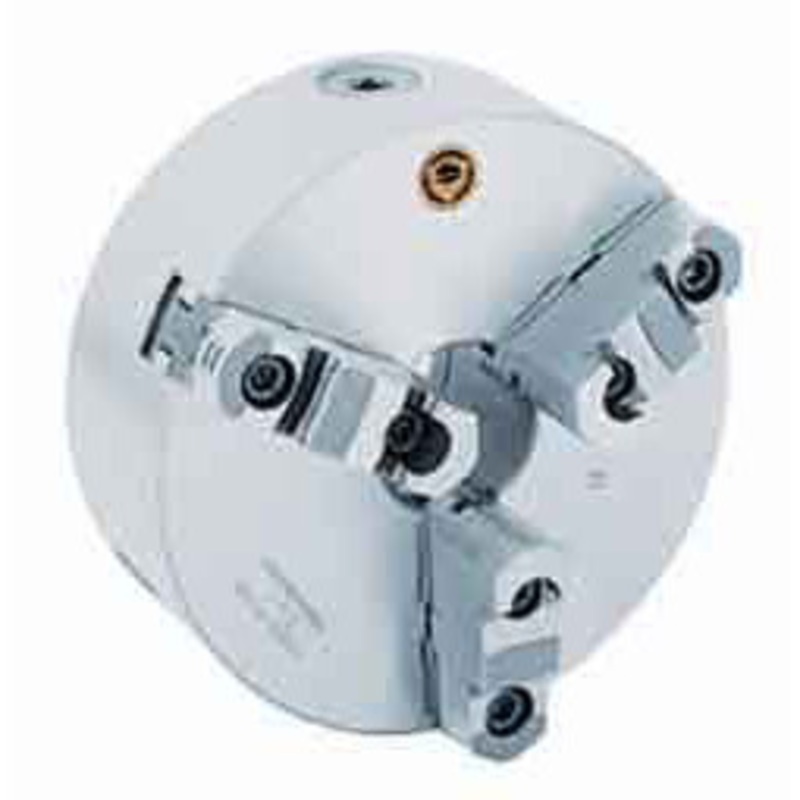

Bison 3-Jaw Lathe Chuck Self Centering
“D-1″ Camlock Mount, 6” Diameter D1-4 7-803-0634

3-Jaw Universal Camlock D Direct Mount Chuck with 2-Piece Hard Reversible Jaws

7-803-0634

Universal Self-Centering Scroll Chucks

These chucks can be used on all types of lathes, and on different kinds of milling, drilling and CNC attachments.

Universal Features:

• Semi-steel body
• 3 pinion design
• Scroll plate is drop forged of fine quality alloy steel and carefully case hardened
• Thread flanks are ground on both sides
• Teeth and guideways are hardened and ground on both sides
• 2-Piece Hard Reversible Jaws

Each chuck is provided with:

• 1 Set of hard master jaws
• 1 Set of hard top reversible jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• Hex keys
• Eye bolts for chuck sizes 15-3/4″ and larger

3-Jaw (2 Piece) Scroll Chuck
Semi-Steel Body
Camlock D 6in D1-4
Bison-Bial

Technical Data:

Chuck Diameter D in 6 Mount D1-4 Maximum Speed RPM 3000 Weight lb 20 Hole Diameter d in 1.6535 B in 3.252 G in 2.5005 C in 0.5118 H in 3.2087 h in 1.693 Camlock Stud,
Diameter 5/8″ Thread M10 x 1 Qty 3 Clamping Range
d1 (min-max) .118 – 2.52 Clamping Range
d2 (min-max) 2.44 – 4.76 Clamping Range
d3 (min-max) 4.53 – 6.30 Clamping Range
d4 (min-max) 1.65 – 3.81 Clamping Range
d5 (min-max) 3.46 – 5.75
