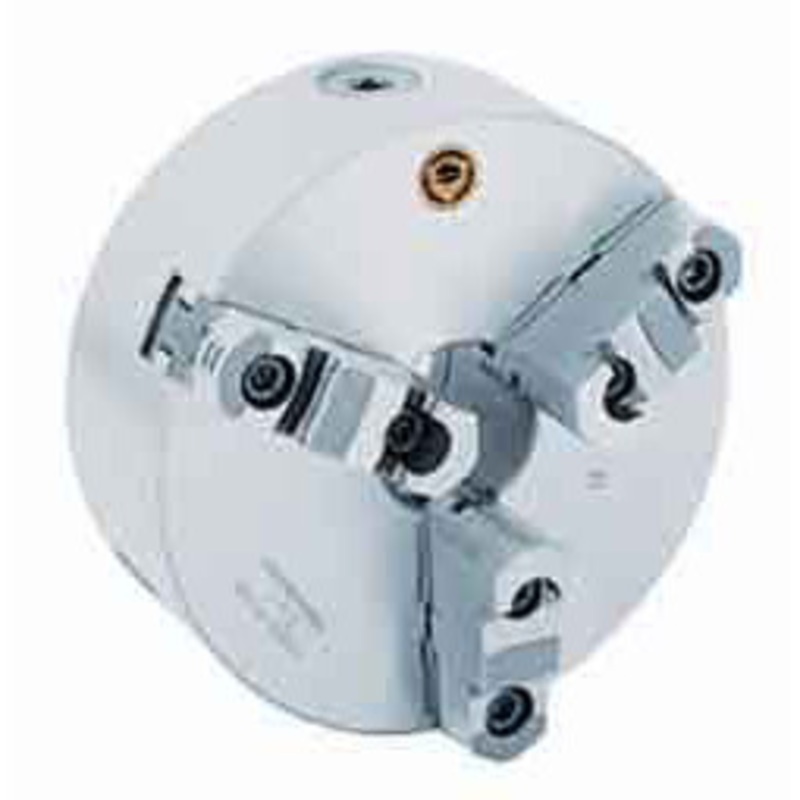

Bison 3-Jaw Lathe Chuck Self Centering
“D-1″ Camlock Mount, 5” Diameter D1-4

3-Jaw Universal Camlock D Direct Mount Chuck with 2-Piece Hard Reversible Jaws

7-803-0534

Universal Self-Centering Scroll Chucks

These chucks can be used on all types of lathes, and on different kinds of milling, drilling and CNC attachments.

Universal Features:

• Semi-steel body
• 3 pinion design
• Scroll plate is drop forged of fine quality alloy steel and carefully case hardened
• Thread flanks are ground on both sides
• Teeth and guideways are hardened and ground on both sides
• 2-Piece Hard Reversible Jaws

Each chuck is provided with:

• 1 Set of hard master jaws
• 1 Set of hard top reversible jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• Hex keys
• Eye bolts for chuck sizes 15-3/4″ and larger

3-Jaw (2 Piece) Scroll Chuck
Semi-Steel Body
Camlock D 5in D1-4
Bison-Bial

Technical Data:

Chuck Diameter D in 5 Mount D1-4 Maximum Speed RPM 3200 Weight lb 11 Hole Diameter d in 1.2598 B in 3.252 G in 2.5005 C in 0.5118 H in 2.7559 h in 1.575 Camlock Stud,
Diameter 5/8 Thread M10 x 1 Qty 3 Clamping Range
d1 (min-max) .118 – 1.97 Clamping Range
d2 (min-max) 2.05 – 3.78 Clamping Range
d3 (min-max) 3.74 – 4.92 Clamping Range
d4 (min-max) 1.34 – 2.99 Clamping Range
d5 (min-max) 2.95 – 4.65

See all Bison 3-Jaw Lathe Chucks Self Centering “D-1” Camlock Mount
