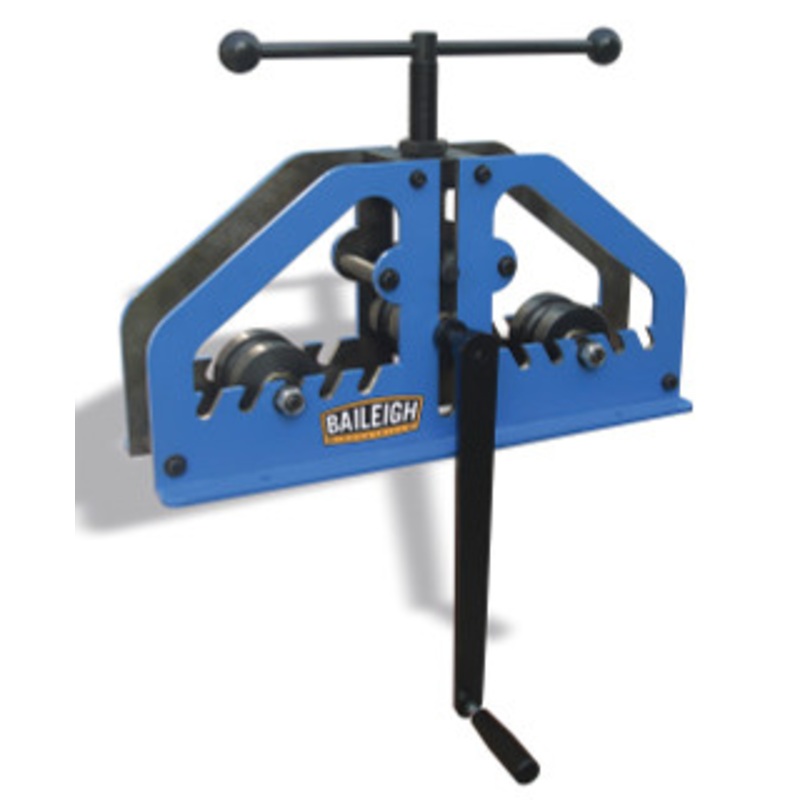

Baileigh R-M7 Radius Bender – BA9-1006861
The portable radius bender R-M7 is built fromquality steel(unlike most competing roll benders in this price range) and can bendtube and pipe to large radii.
- Bends1.5″ pipeto a minimum radius of 20″ and2″ round tubeto a minimum radius of 60″.
- Manual crankmakes quick work of large radius bends*.
- Shafts turn onprecision ball bearingsfor the smoothest possible operation.
- Manydifferent tooling options, available from Baileigh, enable the machine to tackle a wide range of projects
- Takes up little spaceand will easily fit into even the smallest shops.
- Includes a set of 1-1/2″ OD tube dies.
- Baileigh covers this tubing roller with a1-year parts warranty and lifetime technical support by phone.
* Please note that the R-M7 steel roll bender is not for rolling complete circles.
Specifications:
| Part Number |
R-M7 |
| Stock Number |
BA9-1006861 |
| Roll Adjustment |
Manual |
| Pipe Capacity |
Size: 1.5″ / Min. Radius: 20″ |
| Round Tube Capacity |
Size: 2″ / Min. Radius: 60″ |
| Shaft Center Distance |
Adj. (lower rolls) |
| Rectangle Capacity |
Size: 1 x 2″ / Min. Radius.: 10″ |
| Pinch |
Single |
| Capacity Flat Bar |
Size: 1.25″ / Min. Radius.: 10″ |
| Power |
Manual |
| Shipping Weight |
83 lbs |
| Material Type |
All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel. |
| *Optional Tooling |
Some applications may require optional tooling.
Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Shipping Dimensions |
26″ x 10″ x 19″ |
