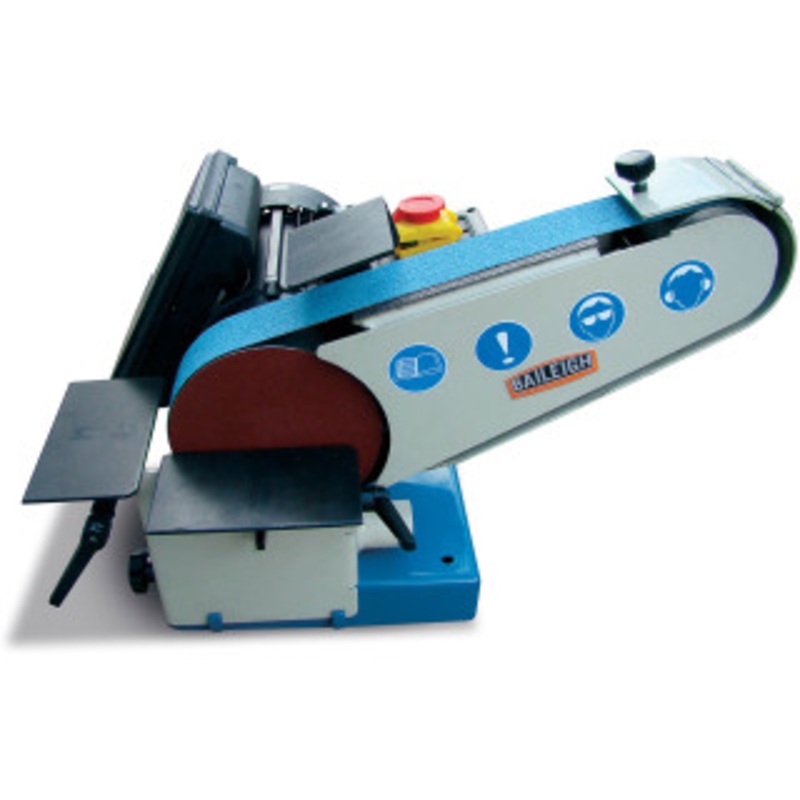

Baileigh DBG-62 Combination Belt & Disc Grinder – BA9-1002674
40″ x 2″ Belt – 6″ Disc – 110V, 1 HP
Think of it as 2 for the price of 1! This machine combines a disc grinder and a belt grinder into a single compact floor plan, ideal for base or bench mounting.
Features:
- Requires110-volt single-phase power, perfect for any fabrication or home shop.
- Belt grinder section consists of2″ wide x 40″ long abrasive beltthat travels at4400 fpm.
- Grinder runshorizontally or verticallyat an angle of up to 50.
- 6″ diameter grinding sectionturns at2800 rpm.
- Quick-release leverlets you change belt quickly.
- Convenient lock design allows foreasy chamfer angle adjustment.
- Fan-cooled motorallows the machine to run for long periods of time without overheating.
- Includes1-year warrantyandlifetime technical support.
Recommended for: Smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.
Specifications:
| Part Number |
DBG-62 |
| Stock Number |
BA9-1002674 |
| Motor Hp |
1 |
| Table Dimensions |
5.31″ x 3.14″ |
| Belt Size L x W |
40″ x 2″ |
| Belt Speed (ft./min.) |
4,330 fpm |
| Disc Diameter |
6″ |
| Disc Speed |
2,800 rpm |
| Power |
110V |
| Shipping Weight |
59 lbs |
| Shipping Dimensions |
23″ x 17″ x 17″ |
