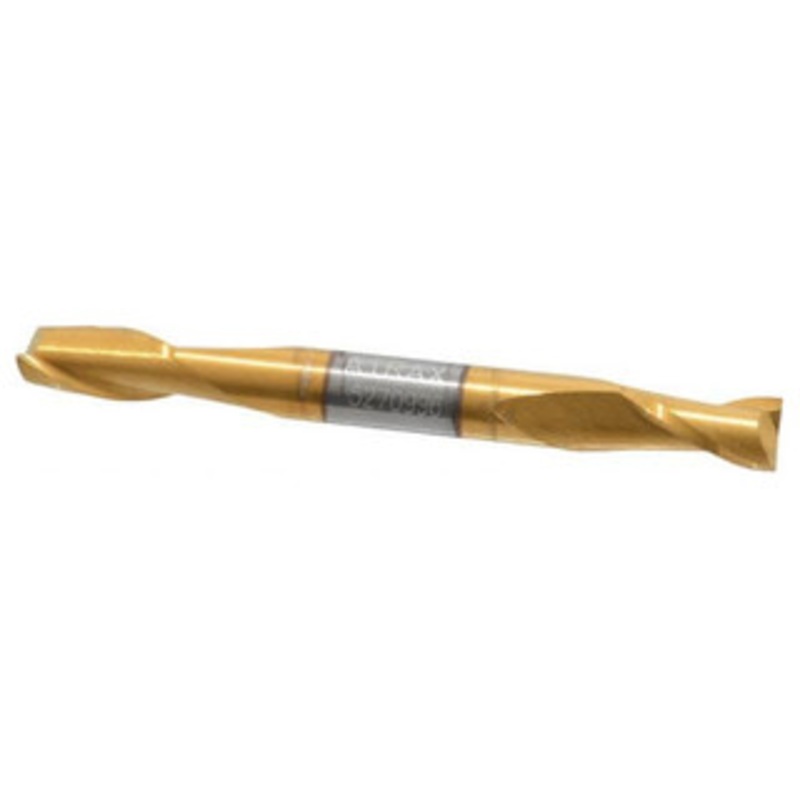

Atrax 2-Flute TiN Coated Centercutting Double End Mill
1/4″ Mill Dia., 1/4″ Shank Dia., 1/2″ LOC

Solid Micrograin Carbide TiN Coated

Surface Treatments: TiN (Titanium Nitride)

Features:

• General purpose use
• Extends tool life
• Used for aggressive machining of steels
• Requires increase of 25 to 30% in machining speeds vs. HSS

Tolerances: Size Tolerance Shank Dia. All Sizes +.000/-.0005″ Cutting Dia. 1/32 – 1/4″ +.000/-.002″ 9/32 – 1/2″ +.000/-.003″

Specifications:

Mill Diameter (Inch) 1/4 Mill Diameter (Decimal Inch) 0.2500 Number of Flutes 2 Length of Cut (Inch) 1/2 Length of Cut (Decimal Inch) 0.5000 Material Solid Carbide Finish/Coating TiN Shank Diameter (Inch) 1/4 Single or Double End Double Overall Length (Inch) 2-1/2 Center Cutting Center Cutting Cutting Direction Right Hand Flute Type Spiral Helix Angle 30.00 Material Grade Micrograin Chipbreaker No
