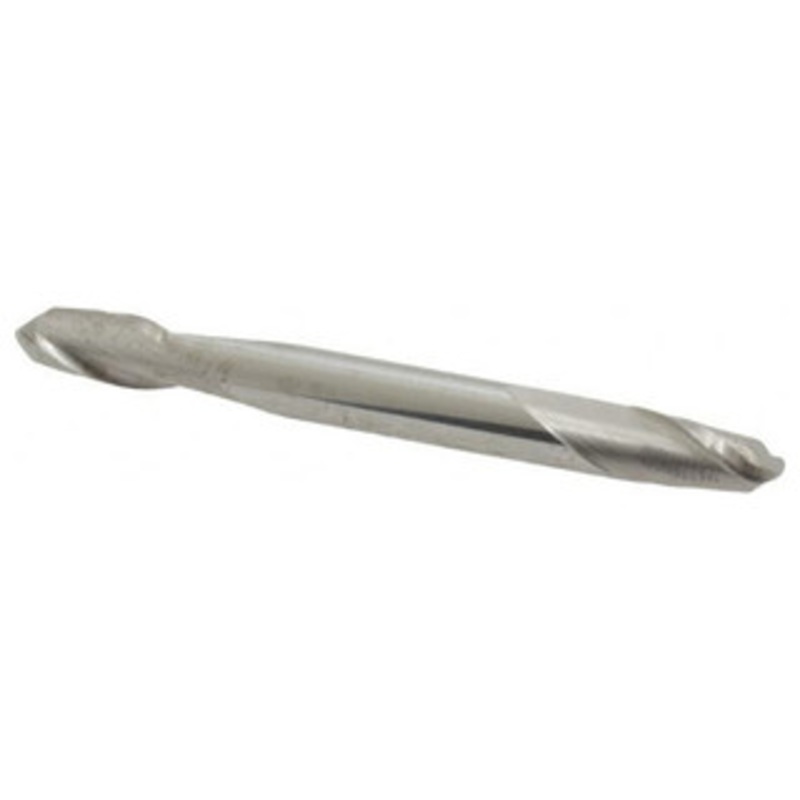

Atrax 2-Flute Centercutting Ball Double End Mill
3/16″ Mill Dia., 3/16″ Shank Dia., 3/8″ LOC

Solid Micrograin Carbide Stub and Regular Lengths

Features:

• Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Tolerances: Size Tolerance Shank Dia. All Sizes +.000/-.0005″ Cutting Dia. 1/32 – 1/4″ +.000/-.002″ 9/32 – 1/2″ +.000/-.003″

Specifications:

Mill Diameter (Inch) 3/16 Mill Diameter (Decimal Inch) 0.1875 Number of Flutes 2 Length of Cut (Inch) 3/8 Length of Cut (Decimal Inch) 0.3750 Material Solid Carbide Overall Length (Inch) 2 Shank Diameter (Inch) 3/16 Finish/Coating Uncoated Single or Double End Double Helix Angle 30.00 Length Type Regular Cutting Direction Right Hand Flute Direction Right Hand
