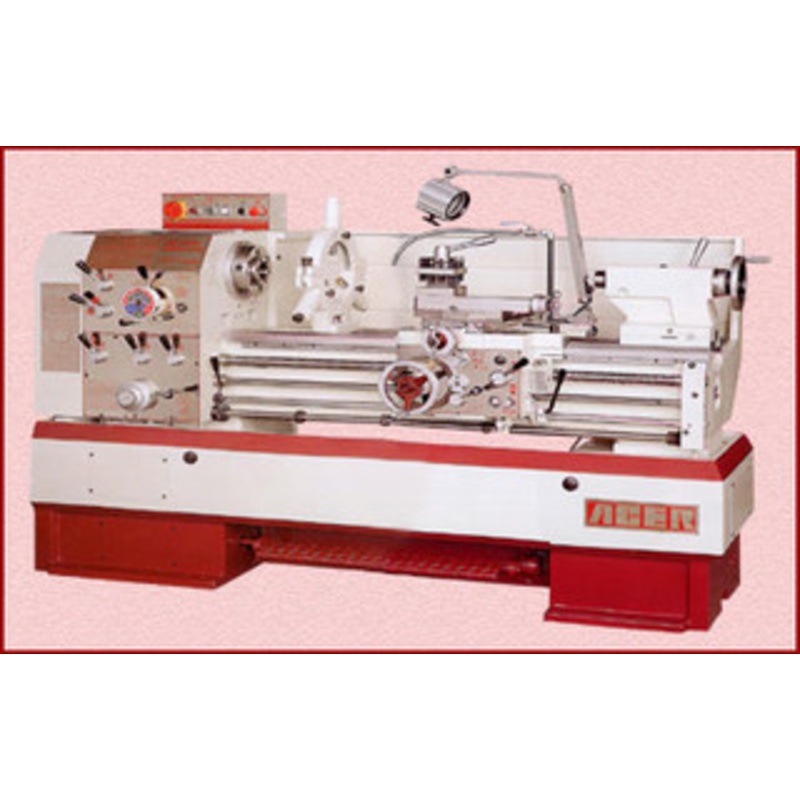

ACER 17″ Dynamic Engine Lathes

Features:

• Headstock’s rigidity and durability are derived from high tensile cast iron (FC25).
• A uniquely designed gear box offers a comprehensive range of inch and metric threads without changing gears.
• Simple laid-out electric cabinet is easy to maintain and easy to fix.
• Saddle is coated with Turcite-B to provide wear resistance.
• Three point support on the spindle is the key to heavy cutting.
• Triangular ribbed bed with annealing process on the casting allows no deformation to occur on the slideways.
• A 2-1/4″ diametered quill, graduated in inch and metric scales, is made from low carbon steel (SCM4), and it is hardened and ground to its accuracy.
• Electro-trochoid pump forces lubrication oil to all running parts inside the headstock.
• Oil bathed cross lead screw (optional).
• Oil flood indicator.
• Hand chip guard.
• Output shaft of the gear box is designed with a safety pin to protect from damage.
• Power disconnecting limit switch.
• Drip-proof 7.5 HP spindle motor.
• Mechanical drum type brake is easy to adjust and maintain.
• Hardened & ground bedways at Rockwell C 55
• Hardened & ground cross slideways.
• Saddle lock device for heavy cutting.
• Triangular bed web for rigidity.
• Oil bathed longitudinal lead screw.
• Forward/stop/reverse lever with safety device.
• Oil level indicator.
• Multi-position length stop.
• Machine bed with FC-30 casting iron.
• Machine weighs in at 3,500 / 3,950 / 4,400 lbs.

Standard Accessories:

• 10″ D1-6 3-Jaw Chuck
• 4-Jaw Tool Post
• Steady Rest (0.6″ – 7″)
• Halogen Light
• Chuck Guard w/Emergency Stop
• Built in Coolant System
• Full Length Splash Guard
• 14″ Face Plate
• Toolbox with Tools
• 9″ 3-Jaw & 12″ 4-Jaw Adapter Plates

Special Package Price Includes:

• Dynamic 17″ Series Lathe w/Standard Accessories, “Newall” C80 2-axis Digital Readout & Pre-Installation at ACER Warehouse

Click Here for Specifications
