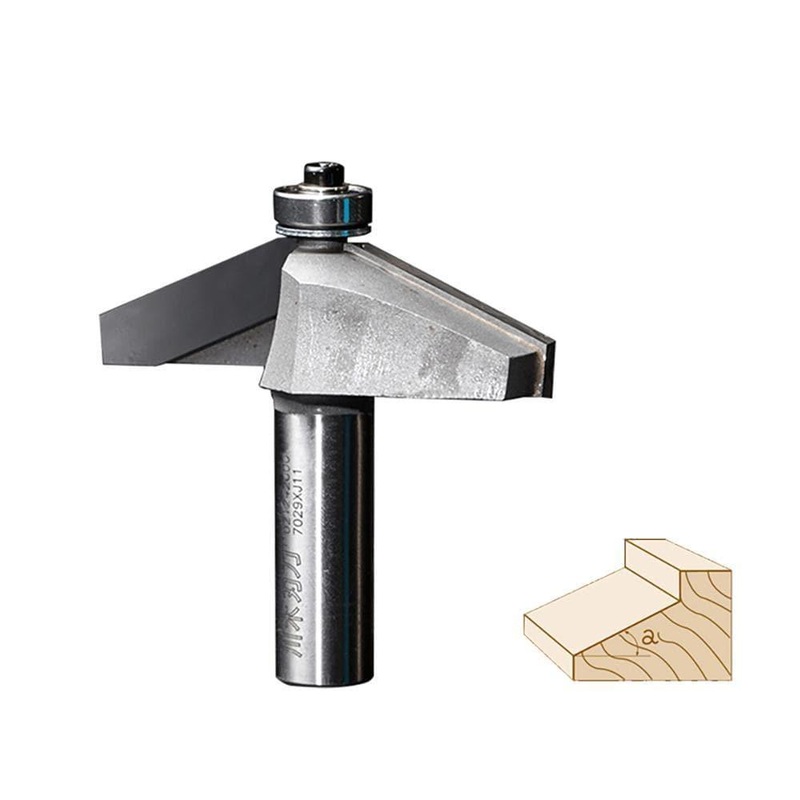

The low-angle bevel edge bit without bearing is designed for chamfering or softening edges. It will cut a 24(or 66) angle on your workpiece, such as the table edge. It can also be used to create miter joints for a box. We also offer the edge bevel router bits of other angles, including 10, 12, 15, and 25&30.For better safety, we suggest using our chamfer horse nose router bits in a router table or a routing machine, instead of a handheld router. Pay attention to the RPM and feed speed.We supply a full line of industrial-grade router bits.For our European-standard precision, premium carbide tips supplied by CeratizitAdoptingadvanced welding technology, you can rely on our quality.The guide bearing can guide the bit better along with the workpiece, producing a smooth and precise cut.Technical informationShank Size x B(In.)DHBMaterial1/2 x1/41″(25.7mm)2419/64″(7.58mm)1/4(6.35mm)Tungsten Carbide1/2 x5/161-1/8″(28.9mm)2421/64″(8.3mm)5/16(7.96mm)Tungsten Carbide1/2 x 3/81-1/4″(32.04mm)2427/64″(10.58mm)3/8(9.52mm)Tungsten Carbide1/2 x 7/161-3/8″(35.2mm)247/16(11.29mm)7/16(11.1mm)Tungsten Carbide1/2x 1/21-1/2″(38.4mm)2415/32″(12mm)1/2(12.7mm)Tungsten Carbide1/2 x9/161-5/8″(41.57mm)2417/32″(13.49mm)9/16(14.28mm)Tungsten Carbide1/2×5/81-3/4″(44.75mm)249/16″(14.2mm)5/8(15.87mm)Tungsten Carbide1/2 x3/42″(51.1mm)2439/64″(15.62mm)3/4″(19.05mm)Tungsten Carbide1/2×13/162-9/64″(54.27mm)2441/64″(16.32mm)13/16″(20.62mm)Tungsten Carbide1/2×7/82-1/4(57.45mm)2443/64″(17.02mm)7/8″(22.2mm)Tungsten Carbide1/2×12-1/2″(63.8mm)2423/32″(18.44mm)1″(25.4mm)Tungsten CarbideApplicationsWoodMachineCNC RouterFixed Base RouterPlunge RouterBench Top Router TableSHIPPING DIAMETERUNITPcsNet Weight50PackageIn Plastic BoxPackage Size95 x 18 x 18mm

Chamfer Router Bits
