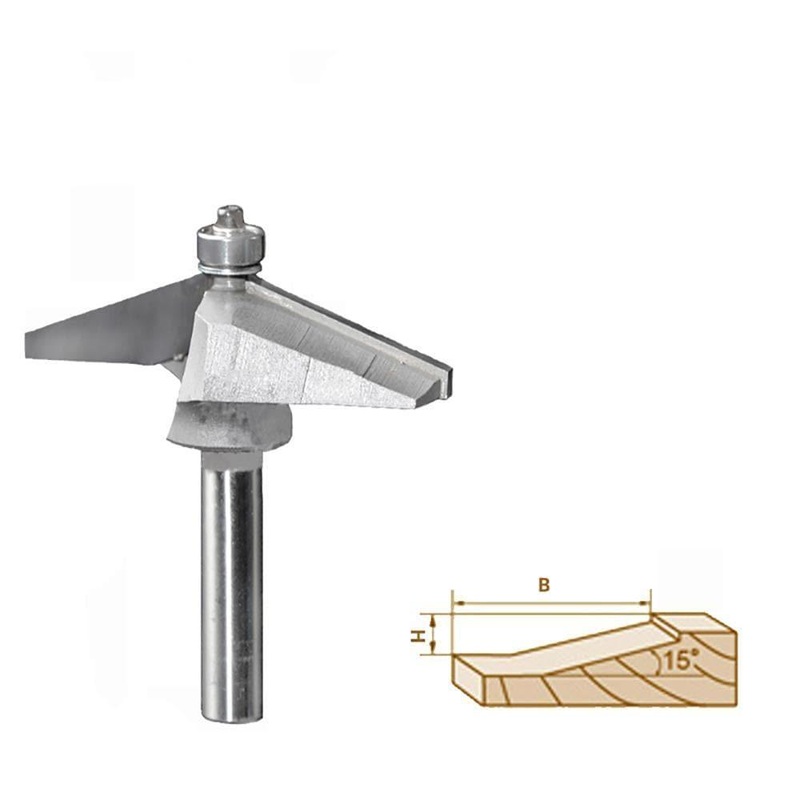

FeaturesThe low-angle bevel edge-forming bit is designed for chamfering or softening edges. It will cut a 15(or 75)angle on your workpieces, such as the table edge or a drawer face. It can also be used to create miter jointsfor a box. We also offer the edge bevel router bits of other angles, including 10, 12, 24, and 25&30.For better safety, we suggest using the chamfer horse nose router bits in a router table or a routing machine, instead of a handheld router.We supply a full line of industrial-grade router bits. For the carbide tips supplied by Ceratizit, European-standard precision, and advanced welding technology, you can trust our quality.For better safetyPlease pay attention to the RPM, and feed speed.Please always wear proper safety gear when working.Technical informationShank Size x B(inch)DBHMaterial1/2 x 3/42″(51.1mm)3/4″(19.05mm)5/16″(7.96mm)Tungsten Carbide1/2 x 7/82-1/4″(57.45mm)7/8″(22.2mm)5/16″(7.96mm)Tungsten Carbide1/2×12-1/2″(63.8mm)1″(25.4mm)3/8″(9.52mm)Tungsten Carbide1/2 x 1-1/82-49/64″(70.2mm)1-1/8″(28.6mm)3/8″(10.14mm)Tungsten Carbide1/2 x 1-1/43″(76.5mm)1-1/4″(31.75mm)7/16″(11.1mm)Tungsten Carbide1/2 x 1-3/83-1/4″(82.8mm)1-3/8″(34.9mm)17/32″(13.5mm)Tungsten Carbide1/2×1-7/163-25/64″(86mm)1-7/16″(36.51mm)1/2″(12.7mm)Tungsten Carbide1/2 x 1-1/23-33/64″(89.2mm)1-1/2″(38.1mm)9/16″(14.3mm)Tungsten CarbideApplicationsWoodMachineCNC RouterFixed Base RouterPlunge RouterBench Top Router TableSHIPPING DIAMETERUNITPcsNet Weight50PackageIn Plastic BoxPackage Size95 x 18 x 18mm

Chamfer Router Bits
